In the first post of this series, we already explored the swaggers of the eForms APIs. But when exploring the functions you probably quickly came to the point “ok, but what do I upload here now?”. While the swagger documents the parameters of the APIs it does not document the content of the files(/base64) to upload.
Classes from schema
But eForms SDK to the rescue: It contains the folder schemas which, as the name suggests, contains the schema in the form of xsd files. For generating C# classes there is the xsd.exe which was installed for you with Visual Studio. First, copy the schemas into your project, then right-click the folder and select Open in Terminal and then we can use something like xsd /c xyz.xsd to generate the classes for this schema. If you now try this with a file of the schemas you will quickly notice that this does not work because the .xsd of eForms (/maindoc) reference xsds of UBL in the /common folder and xsd.exe cant resolve this. You can however pass multiple files to xsd.exe so we could simply pass all the .xsd in the schema subfolders, that gives us a rather long statement in the console which is hard to repeat should the schema change in the future. But luckily you can also define a parameters file that holds the options for us so we can simply execute xsd /c /p:parameters.xml to generate the classes for a dozen xsds. The parameters.xml looks something like this:
<xsd xmlns='http://microsoft.com/dotnet/tools/xsd/'>
<generateClasses language='CS' namespace='myNameSpace.Schemas'>
<schema>.\maindoc\UBL-ContractNotice-2.3.xsd</schema>
<schema>.\common\UBL-CommonBasicComponents-2.3.xsd</schema>
<schema>.\common\UBL-CommonExtensionComponents-2.3.xsd</schema>
<schema>.\common\UBL-ExtensionContentDataType-2.3.xsd</schema>
...
</generateClasses>
</xsd>
One missing feature of xsd for me: It will always name the resulting .cs like the last .xsd file, which is not very descriptive since the file will contain a multitude of classes, so I like to rename it.
Sample repo
Of course, this series of articles comes with a repository to store the full code. For example, the parameters.xml of which there is only an extract in this article. You might also find further tricks like the GenerateModels.ps1 which also renames the resulting file accordingly.
Building a model
When you want to publish a notice there are three root types that we want to instantiate: ContractNoticeType for announcing tenders, ContractAwardNoticeType for announcing the winner and maybe PriorInformationNoticeType for pre-announcing a tender. We can simply write new ContractNoticeType() now and then start to fill in the data from what the user entered into our actual app. For the sample repository, this will be static data from a NoticeModel. One advice here: Due to the XML structure with UBL, the mapping will be quite verbose. Therefore do not start to map like this:
var notice = new ContractNoticeType
{
UBLExtensions = new UBLExtensionType[]
{
new UBLExtensionType
{
ExtensionContent = new ExtensionContentType
{
Item = new EformsExtension
{
NoticeSubType = new NoticeSubTypeType
{
SubTypeCode = new SubTypeCodeType
{
listName = "notice-subtype",
Value = $"{(int)model.NoticeType}"
}
}
}
}
}
}
};
Instead, try to make functions that split up the mapping to reduce your Christmas tree. In the sample code above, the notice-subtype specifies what type of tender it is, e.g. a concession, a regular contract or a military contract. Each subtype has its requirements of fields, so it does not make much sense here to go over the mandatory fields I explored in my project since they might be very different for you. But let me at least point you to the notice-types folder of the SDK which contains a JSON definition for the fields of each subtype form. These are quite long but might be helpful. A larger application could parse those JSONs to render forms. Or the descriptions can be used to determine what a “Field BT-702(b) missing” message from the Validation API means (“Notice Official Language”).
Aside from that, we will at least need UBLVersionID = new UBLVersionIDType { Value = "2.3" } and CustomizationID = new CustomizationIDType { Value = "eforms-sdk-1.6" } (of course the versions might have changed by the time you read this).
Serializing
So now that we have a draft of what we think is a notice but we cannot pass our model to eForms directly. Instead, we need to pass it as serialized XML. For that C# offers the XmlSerializer class. There is just one trick I want to show you here: By default, the element will contain the namespace of the element but we can make these namespaces known globally like this.
var ns = new XmlSerializerNamespaces();
ns.Add("cbc", "urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2");
...
var serx = new XmlSerializer(eform.GetType());
serx.Serialize(stringWriter, eform, ns);
With that everything of the CommonBasicComponents will just have the prefix cbc. And that’s it, because of the namespace fuzz I encapsulated the serialization in its own service in the sample which returns a byte array that can be saved to a local file for viewing for now.

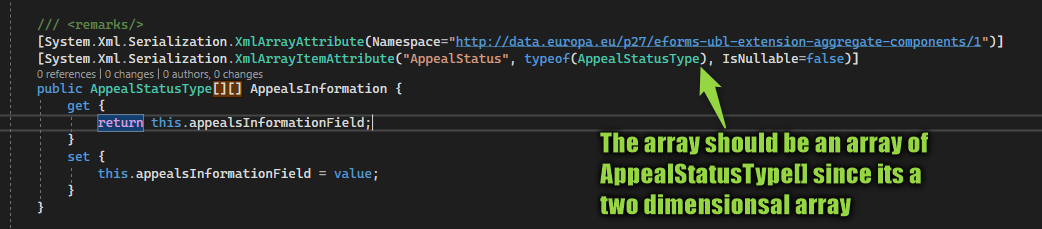

NOTE: You might run into an issue with the AppealStatusType which is a two dimensional array. This is not generated correctly in my version of xsd, resulting in weird errors like “Serializing JavaScript is not supported”, just adding
[]to the XmlArrayAttributes type was enough to fix this.
Summary
To get an XML we first transformed the schema files (.xsd) of the eForms SDK into a .cs file with all the classes necessary to build a notice, award or prior information. Then we mapped our application model to the models of eForms and finally serialized the model into an XML file.
Next up will be to validate that model for which we will use the Validation API of eForms. But that’s the topic of the next post!
